Weaving machine equipment is a part of textile equipment. Our company provides silk weaving machine equipment such as 24# composite nylon shuttle, silk woven wooden shuttle, cowhide picker, 11 # leather knot, 24# shuttle, and red steel paper wooden shuttle. At present, the supply of the 24# composite nylon shuttle has been stopped. The dimensions of the 24# red steel paper wooden shuttle are: total length (including clamp type shuttle tip) 35 centimeters, bottom outer width 33.8 millimeters, total height 24mm; shuttle cavity width 24mm, length 210mm, depth 22mm.

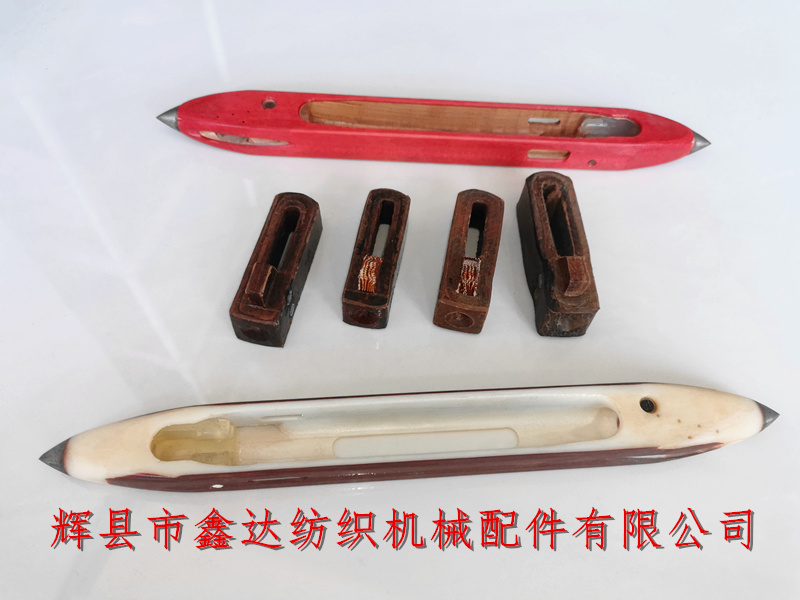

The products in the above picture, from top to bottom, are red steel paper wooden shuttle (24# right hand), cowhide knot (shuttle throwing knot, Xiding picker), and composite nylon shuttle (left hand); The leather knots (shuttle skins,picker) from left to right are: 50-3#, 11#, 12#, and 50-2#.
The 24# wooden shuttle is made of four sided red steel paper, and the front end of the inner cavity is a 95 ceramic eye with a diameter of 3mm. The outer side of the front is made of flexible red nylon. The clamp is matched with a coreless photoelectric tube with a neck diameter of 10.5mm.
The weight of a single red steel paper wooden shuttle is 190 grams, the weight of a single nylon composite shuttle is 189 grams, the weight of the 50-3# leather knot is 56 grams per piece, the weight of the 11# cowhide Picker is 48 grams per piece, the weight of the 12# buffer knot is 57 grams per piece, and the weight of the 50-2# shuttle knot is 65 grams per piece.
If you need to purchase textile equipment, composite shuttles, nylon shuttles, silk weaving, wooden shuttles, Xiding picker, leather knots, 24# shuttles, or learn about their detailed parameters, please contact our company's Manager Yang for consultation.
